Sunward Machinery

Compact Excavators

SWE 25 UF

SWE 25 UF

Known for its exceptional performance, the SEW 25 UF is a zero-tail mini excavator that can access tight or narrow spaces.

Max. digging depth

Width

Power output

2 840 mm
1 500 mm
14.6 kW

SWE 35UF

SWE 35UF

The high-performance SWE 35UF is the largest mini-excavator in the Sunward machinery range. Its largest size allows it to handle bigger jobs without sacrificing manoeuvrability, performance or speed.

Max. digging depth
Width
Power output

3 120 mm
1 700 mm
18.2 kW

SWE 90UF

SWE 90UF

Developed especially for the needs of the European market, the Sunward 90UF compact excavator combines a compact design with heavy-duty performance.

Max. digging depth
Width
Power output

4 545 mm
2 250 mm
46.2 kW


SWE 20FED

Equipments and performance

Engine Power : 8 KW (3-Phase asynchronous)
System voltage : 76.8V
Battery type : LFP (lithium ferrophosphate)
3KW charger integrated (monofase 240V )
Battery power: 20kWh
Extendable lower frame: 990mm to 1320mm
Extendable blade with foldable extensions
Rubber crawlers (230mm)
Standard arm: 1150mm
1st Auxiliary hydraulic circuit line to arm end (2 pipes)
2nd Auxiliary hydraulic circuit line to arm end (2 pipes)
3rd hydraulic quick hitch line to arm end (2 pipes)
one LED work light on the boom, and left of the boom
two front LED working lights on the cabin
Beacon light with magnetic base
Radio with usb portal (only for cabin)
Heater - Without air conditionning (only for cabin)
Auto-shift travelling
Boom cylinder protection plate
Electronic batt key
TOPS / FOPS1 cabin or canopy
Digital monitor (user data + incident warning)
Grease gun and tool box
Operator's manual
Travel alarm
Direct return valve to tank
Emergency button
Direct return by pass valve to tank



A 990 mm
B 990/1360 mm
C 2415 mm
D 230 mm
E

F
G
H
j 3945 mm
* Extended lower frame

k 4040 mm
a 3770 mm
b 2720 mm
c 2380 mm
d 1565 mm

e 2210 mm
f 295 mm
g 360 mm
h 1555 mm
I 3820 mm
(with deported swing)

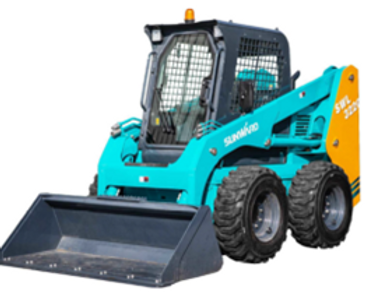

SWL 3230

Equipments and performance

Kubota stage-V engine,V3307-CR-TE5B,55.4kw/2600rpm,
Air-conditioning
FOPS / ROPS cabin
Closed hydrostatic travelling system
Standard hydraulic auto-level system
Highflow system with 3 quick couplers
Double accelerator control system
Pilot control operating system
Travelling alarm system (Backward)
Beacon light with magnetic base
Grease gun and tool box
Operator's manual
1 standard bucket

R 1344 mm
S 2201mm
T 1747mm
U 1170mm
V 1475mm

Q 26°
p 205mm
M 1148mm
W 1830mm

A 4020mm
B 3123mm
C 2068mm
D 2948mm
E 2958mm

F 3728mm
G 43°
J 625mm
K 30°
L 93°


SWSL0807HD/DC

4X6V/225Ah Battery
Proportional Control
Extendable Platform
Foldable guardrails Platform
Self-lock gate on platform
Solid Tire
Hour Meter
Standard transport forklift hole
Safety maintenance struts
Horn
Flashing Beacon
Action beep
Dual front wheels drive
Pit protection device
Emergency descent system
Emergency Stop Button
Automatic Brake System
Tilt sensor with alarm
Charging protection system
Fault diagnosis system
Overload protection system


SWSL1008HD

4X6V/225Ah Battery
Proportional Control
Extendable Platform
Foldable guardrails Platform
Self-lock gate on platform
Solid Tire
Hour Meter
Standard transport forklift hole
Safety maintenance struts

Horn
Flashing Beacon
Action beep
Dual front wheels drive
Pit protection device
Emergency descent system
Emergency Stop Button
Automatic Brake System
Tilt sensor with alarm
Charging protection system
Fault diagnosis system
Overload protection system


Overall dimension (L × W × H)
B Total height
C Upper structure width
D Ground clearance of counter weight
E Minimum ground clearance
F Tail swing radius
G Track length on the ground
H Track length
I Track gauge
J Undercarriage width
K Track shoe width
L Cab height

SWE 24FED

9 650 × 2 990 × 3 318 mm
9 650 mm
3 318 mm
2 710 mm
1 070 mm
483 mm
2 770 mm
3 480 mm
4 260 mm
2 388 mm
2 990 mm
600 mm
3 061 mm

Engine power : 120KW
Battery type : LFP (lithium ferrophosphate)
System voltage (DC) : 618.24 V
Battery power : 460 kWh
dual CCS2 charging plugs
Motor : 3 phase asynchronous, 120 kW
Steel crawlers (600mm)
1st Auxiliary hydraulic circuit line to arm end (2 pipes)
2nd Auxiliary hydraulic circuit line to arm end (2 pipes)
Hydraulic quick hitch line to arm end (2 pipes)
Oil return pipe (1pipe)
Dual proportional joysticks
two LED work lights under the boom
Beacon light with magnetic base
Radio with usb portal
Air-conditioning
Boom safety valve
Arm safety valve
Travelling alarm
Auto-shift travelling
Safety fence
Rear camera
Battery cut-off switch (plastic)
TOPS / FOPS / ROPS cabin
Touchable monitor (user data + incident warning)
Grease gun and tool box
Operator's manual
One standard bucket  (1120mm, 1000L)




Medium Excavators

SWE 215F

SWE 215F

This 21-ton medium excavator is perfect for large construction projects, demolition work or quarrying. The SWE 215F is a vital kit on every building site, boasting a long lifetime, durability and versatility.

Max. digging depth
Width
Power output

6 750 mm
2 800 mm
129 kW
